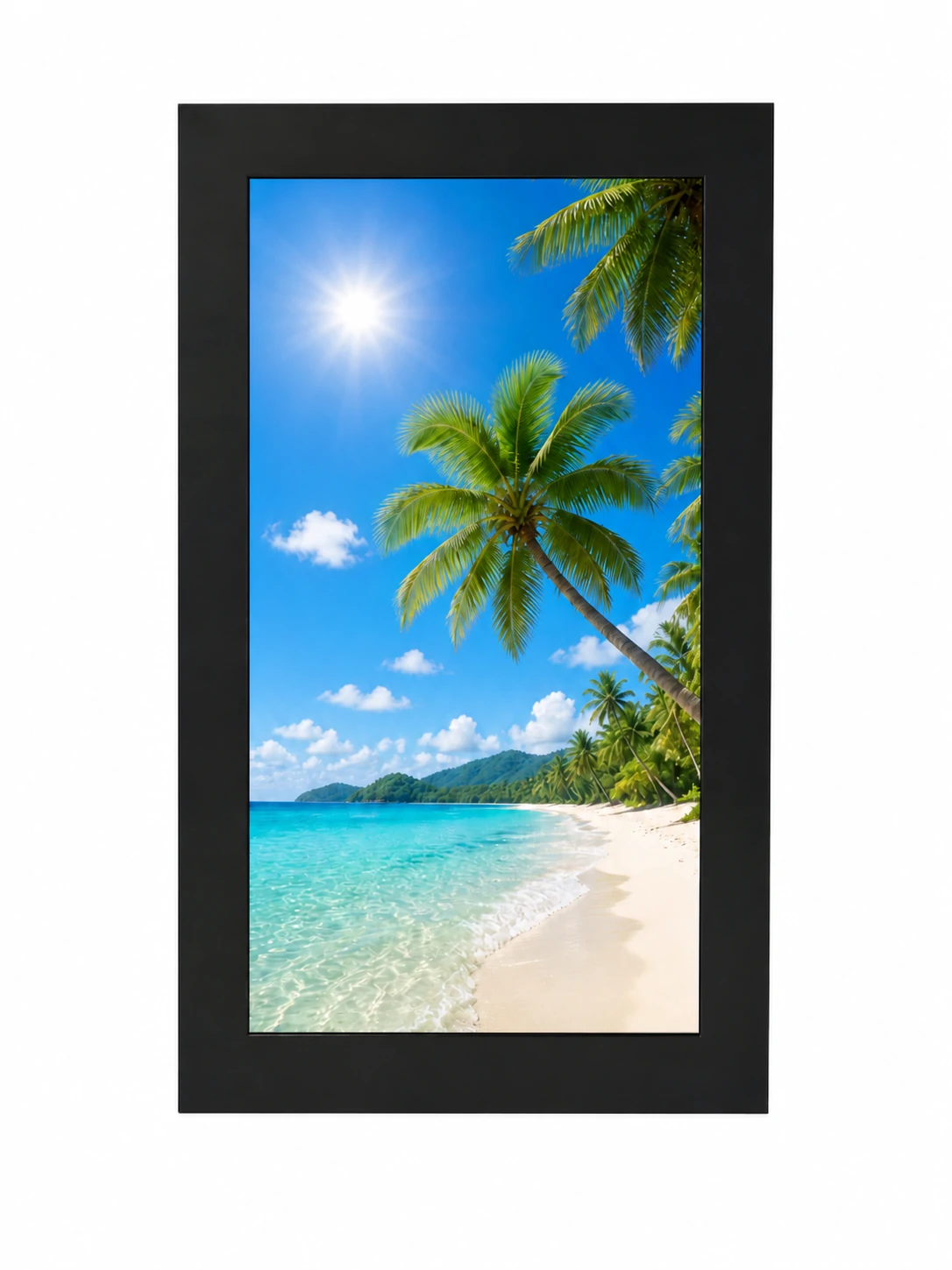

55 Inch Front-Service Outdoor Wall Mounted Display
Model:XT55OEHWM9718
Product Overview
The 55 inch outdoor wall mounted display is a high brightness IP65 outdoor LCD screen designed for advertising, transportation signage, and public information display. It features 2500 nits brightness, 6mm tempered glass, front-access maintenance, anti-theft lock design, auto brightness control, and reliable 24/7 outdoor operation.
Product Features
2500 Nits Sunlight Readable Display
The 2500 nits LCD panel provides clear image visibility in bright environments, making it suitable for storefront windows, outdoor kiosks and semi-outdoor advertising applications.
Touch Film for Interactive Operation
The integrated touch film supports interactive operation for wayfinding, product inquiry, information display and self-service applications.
3+3 Laminated Glass Protection
The front glass uses a 3+3 laminated glass structure to improve safety and durability. It helps protect the LCD surface and is suitable for public commercial environments where front protection is required.
Android 13 System
Built with an Android 13 system board, the module supports flexible content playback and smart display control. It can be used with advertising software, interactive applications or customer-developed systems.
Automatic Brightness Adjustment
The built-in light sensor adjusts screen brightness according to ambient light conditions. This helps improve visibility during daytime and reduce unnecessary power consumption in darker environments.
Customized Module Structure
The high brightness LCD module structure is customized according to the customer’s enclosure, installation method and project requirements. It can be integrated into outdoor cabinets, kiosks, wall-mounted displays or special display housings.
Product Specifications
Display Panel
- Screen Size: 55 inch
- Resolution: 1080 × 1920
- Active Area: 680.4 × 1209.6 mm
- Brightness: 2500 nits
- Contrast Ratio: 1200:1
- Viewing Angle: 178°
- Response Time: 9 ms
- Backlight Lifetime: 50,000 hours
- Screen Orientation: Portrait
Physical
- Housing Material: Powder Coated Galvanized Metal
- Standard Color: Black / White
- Dimensions: 880(l) × 1410(w) × 170(d) mm
- Net Weight: 99 kg
Environment
- Protection Rating: IP65
- Impact Protection: IK10
- Operating Temperature: -10°C to 50°C
- Operating Humidity: 5%–95%
- Continuous Operation: 24/7
System & Connectivity
- HDMI x1
- USB x1
- Optional Interface Support
Power
- Power Supply: AC 110~240V, 50/60Hz
- Max Power Consumption: 400W
Operation
- 247 Continuous Use
- Portrait Support
- Auto Brightness Sensor
